SSV Series

With control disc

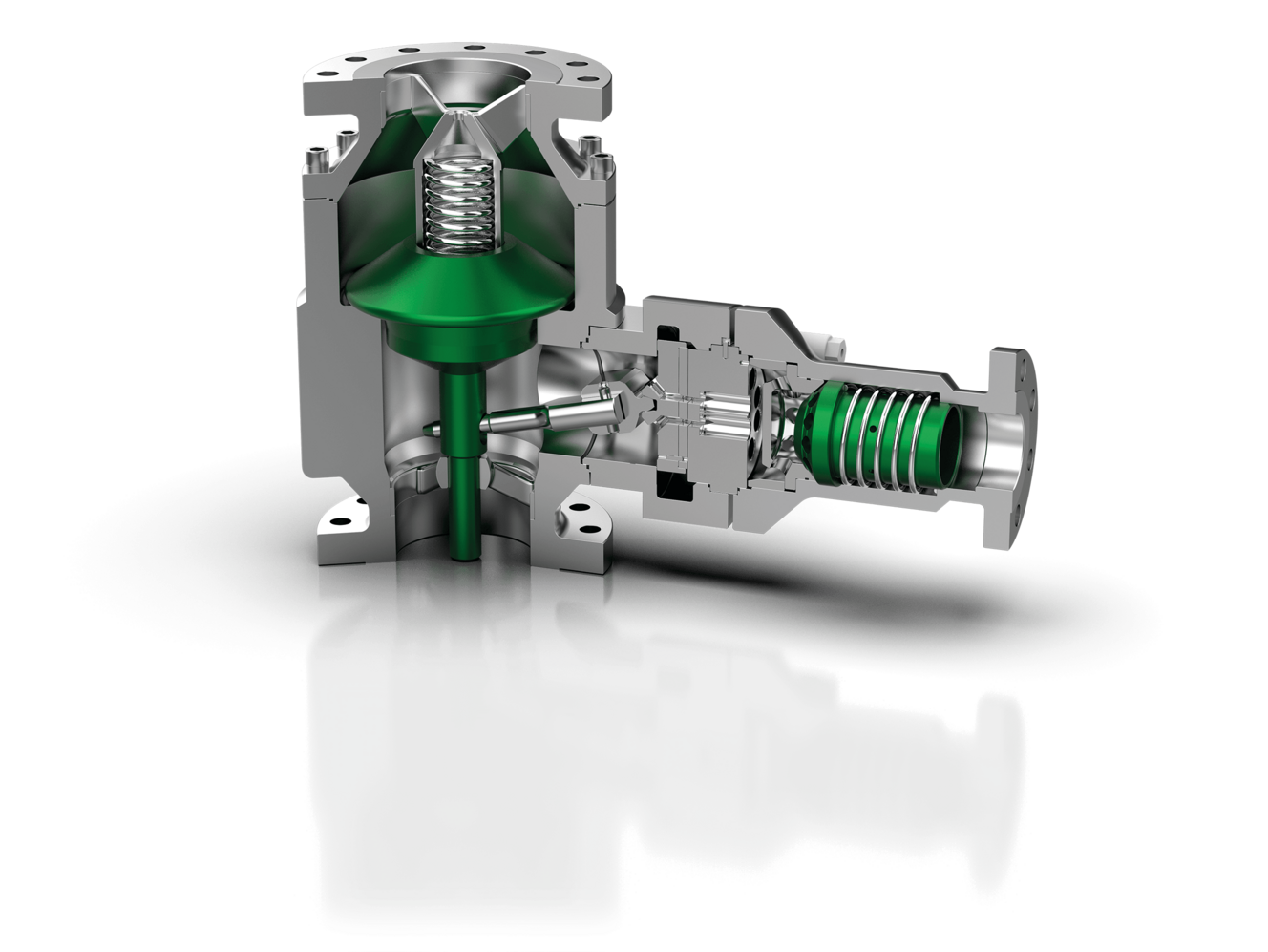

3D rendering of Schroeder Valves SSV 70–80 with non-return valve in the bypass

The AR Valve of our SSV series 40–80 is especially designed for centrifugal pumps which in relation to the main flow require a significantly increased demand for minimum flow, up to 70 % of the main flow at low discharge pressure. Due to the design of the control disc, the use of the valves is limited to a maximum pressure difference between inlet (DN1) and bypass outlet (DN3) of 40 bar.

3D rendering of Schroeder Valves SSV 70–80 with non-return valve in the bypass — SSV70–80 with non-return valve in the bypass

3D rendering of Schroeder Valves SSV 40–50 with throttle in the bypass — SSV40–50 with throttle in the bypass

Detailview of 3D rendering of Schroeder Valves SSV 40–50 — Detailview SSV40–50
