SSV Series

The all-rounder

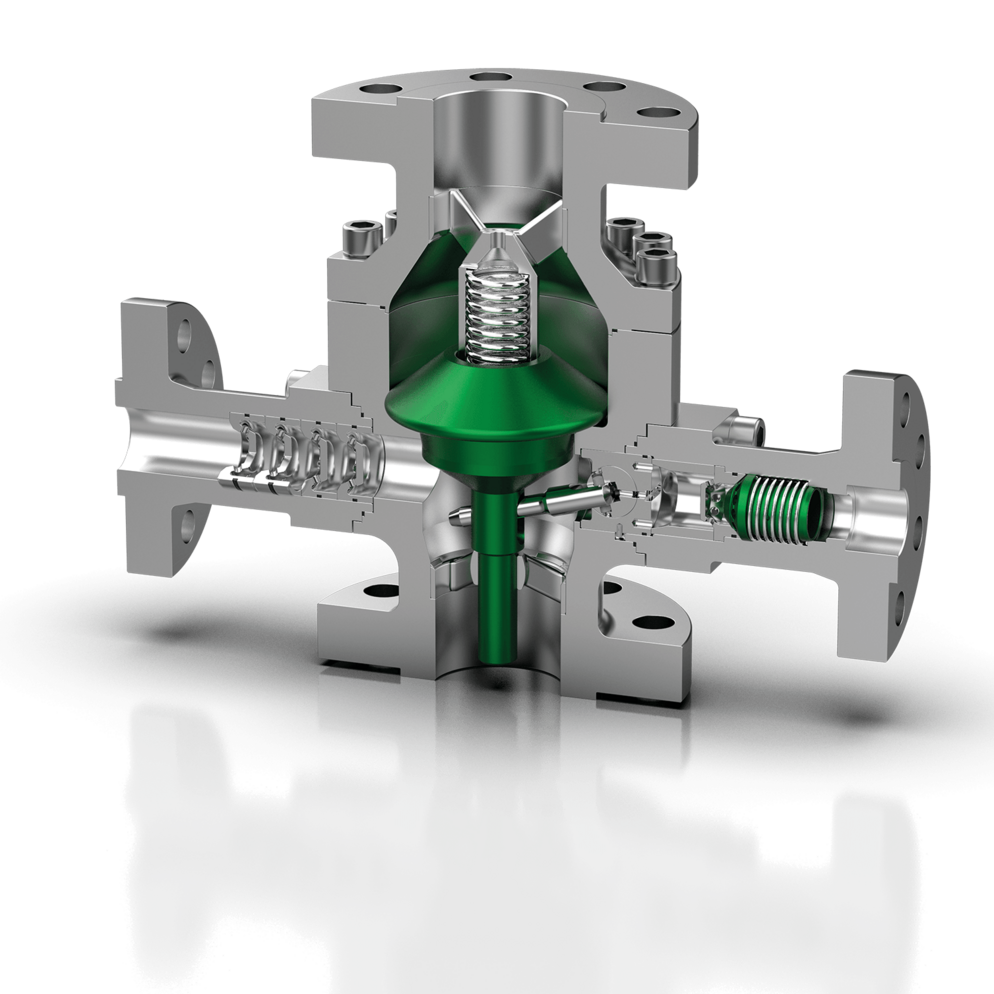

3D rendering of Schroeder Valves SSV 18–20 with non-return valve in the bypass SSV 19 with high-pressure bypass SSV 20 with enlarged bypass

The AR Valve of our SSV series 18, 19 and 20 (see graphic below) is a reliable device that automatically protects centrifugal pumps against wear, total loss and damage that can result from running dry, from cavitation or from operating under low-load conditions, generally suitable for pressures up to 140 bar (SSV18) or up to 180 bar (SSV19). As soon as the main flow falls below the required minimum flow, the valve opens its bypass to the extent that the required pump minimum flow is discharged even if the main flow is zero. The pressure in the bypass is reduced via an integrated throttle line with a bypass non-return valve. The SSV series 10, 11 and 12 work with pressure reduction in the bypass by throttles only.

3D rendering of Schroeder Valves SSV 10–12 with multistage throttles SSV 11 with high-pressure bypass SSV12 with enlarged bypass — SSV10–12 with multistage throttles
SSV11 with high-pressure bypass
SSV12 with enlarged bypass

Detailview of 3D rendering of Schroeder Valves SSV 10–12 — Detail view SSV10–12

3D rendering of Schroeder Valves SSV 18 with optional DN4 branch: main spare- and wear parts. — SSV18 with optional DN4 branch

Scope

The SSV series valves are suitable for all kind of liquid fluids, for example in

boiler feed water and condensate cycles of fossil and nuclear power plants as well as
combined cycle power plants
petrochemical and chemical industries
offshore applications
the production of renewable energies
the paper industry
steel mills
fire extinguishing systems
LNG applications
snow blowers and other industries

Operating principle

The AR Valve is flow-controlled, i.e. the non-return cone that controls the bypass via a lever, is raised solely by the main flow and into a determined position. Increasing main flow lifts, decreasing main flow lowers the cone position. The cone reaches its top end position at operation flow. Via the lever, the non-return cone actuates the rotary valve in the bypass. When the cone is on its seat, the bypass valve is fully open. By opening the discharge line, the increasing main flow lifts the cone and the bypass is closed simultaneously. The valve is operating in a modulating way, i.e. it allows just as much liquid to flow through the bypass as is necessary to supplement the required minimum flow rate of the pump. The addition of main and bypass flow rate is always the required pump minimum flow. As soon as the main flow rate exceeds the pump minimum flow, the bypass is closed. Vice versa, the bypass is opened again when the main flow falls below the minimum flow.

Watch here the SSV Flow Animation.
